KOVA AC Centrifugal Magnetic Drive Pumps


KOVA250  16LPM  250GPH  220/240-50/60Hz  and  110/60Hz

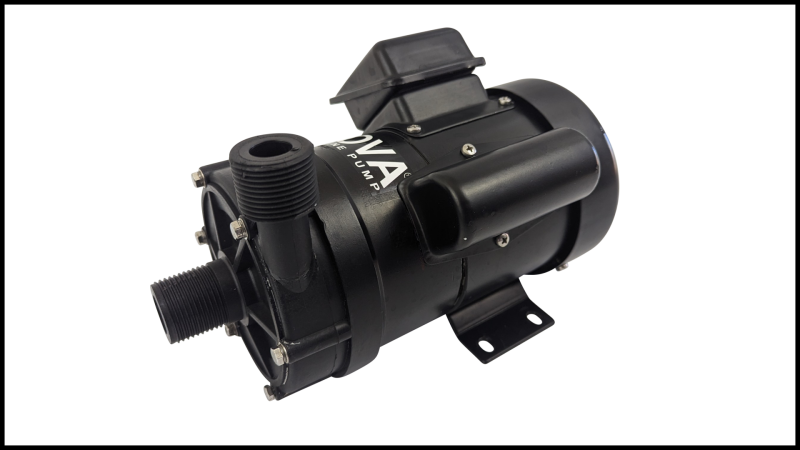

KOVA250 Single Phase induction motor centrifugal magnetic drive pump. Available in 220/240-50/60Hz and 110/60Hz 252GPH / 16LPM 19mm (3/4") Threaded BSP Male fittings in and out. Max Head 2.2Mtrs Weight 1.6Kgs

Capacitor CBB61 - 1uF (Running Cap)


KOVA500  32LPM  500GPH  220/240-50/60Hz  and  110/60Hz

KOVA500 Single Phase induction motor centrifugal magnetic drive pump. Available in 220/240-50/60Hz and 110/60Hz  507GPH / 32LPM 19mm (3/4") threaded BSP Male fittings in and out. Max Head 3.8Mtrs Weight 3.2Kgs Capacitor CBB61 - 1.5uF (Running Cap)


KOVA950  62LPM  950GPH  220/240-50/60Hz  and  110/60Hz

KOVA950 Single Phase induction motor centrifugal fan cooled magnetic drive pump. Available in 220/240-50/60Hz and 110/60Hz  952GPH / 62LPM Male threaded BSP 25mm (1.0") inlet and outlet.   Max Head 5.6Mtrs Weight 5.4Kgs  Capacitor CBB61 - 3uF (Running Cap)


KOVA1360  86LPM  1360GPH  220/240-50/60Hz  and  110/60Hz

KOVA1360 Single Phase induction motor centrifugal fan cooled magnetic drive pump. Available in 220/240-50/60Hz and 110/60Hz  1363GPH / 86LPM 25mm (1.0") threaded BSP Male fittings in and out. Max Head 6.1Mtrs Weight 6.0Kgs

Capacitor CBB61 - 4uF (Running Cap)


KOVA1920 120LPM  1922GPH  220/240-50/60Hz  and  110/60Hz

KOVA1920 Single Phase induction motor centrifugal fan cooled magnetic drive pump. Available in 220/240-50/60Hz and 110/60Hz  1922GPH / 120LPM 25mm (1.0") threaded BSP Male fittings in and out. Max Head 8.5Mtrs Weight 7.9Kgs  AMP Draw 1.2 - 1.8 @ 240VAC

Capacitor CBB61 - 6uF (Running Cap)

(Note: The KOVA Mount in the photo is an option. (KPM-01)


KOVA-TMDH-4040-0 (KOVA2400)

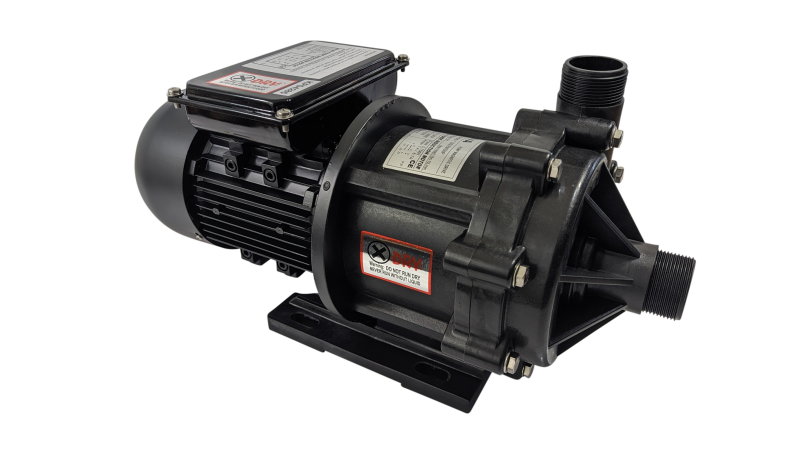

KOVA-TMDH-4040-0 (KOVA2400) Single Phase induction motor centrifugal fan cooled magnetic drive pump. Available in 380/440-3Ph,

220/240-50/60Hz and 110/60Hz. Max flow rate 276-Lpm at 0.5mtr-head - Min flow rate at 10.1-Lpm at 9.9-mtr head. Output 0.37KW / 0.5HP Standard working point flow rate 2377GPH/150LPM BSP Fittings: 40mm (1.5") Inlet / 40mm (1.5") Outlet. 110mm wide 430mm long 216mm high (without fittings)

Capacitors for 220/240V 50/60Hz: (Start) CD60 100uf 450V - (Running) CBB60 20uf 300V

Capacitors for 110V 60Hz: (Start) CD60 200uf 450V - (Running) CBB60 45uf 300V

Pump Body: Aluminium TEFC (Totally Enclosed Fan-Cooled) This means that Air is forced automatically over the Pump body by a connected fan at the back of the pump, pushing air forward over the pump body that increases the heat exchange (keeping the pump cool) .

Pump Head: GFRPP (Glass Reinforced Polypropylene with 30% reinforced Fibre) Very strong, and corrosion free, this includes the Impeller.

The shaft is made from "Alumina Ceramic" as well as the shaft seat. Built for longevity and reliability.


KOVA-TMDH-4040-1 (KOVA3000)

KOVA-TMDH-4040-1 (KOVA3000) Single Phase induction motor centrifugal magnetic drive pump.

Available in 380/440-3Ph, 220/240-50/60Hz and 110/60Hz. Max flow rate 330-Lpm at 0.5mtr-head - Min flow rate at 10.1-Lpm at 16.4-mtr head. Output 0.75KW / 1.0HP Standard working point flow rate 2989GPH/190LPM BSP Fittings: 40mm (1.5") Inlet / 40mm (1.5") Outlet. 130mm wide 478mm long 255mm high (without fittings)  AMP Draw 5.5 - 8.2 @ 240VAC

Capacitors for 220/240V 50/60Hz: (Start) CD60 100uf 450V - (Running) CBB60 25uf 300V

Capacitors for 110V 60Hz: (Start) TBA - (Running) TBA

Pump Body: Aluminium TEFC (Totally Enclosed Fan-Cooled) This means that Air is forced automatically over the Pump body by a connected fan at the back of the pump, pushing air forward over the pump body that increases the heat exchange (keeping the pump cool) .

Pump Head: GFRPP (Glass Reinforced Polypropylene with 30% reinforced Fibre) Very strong, and corrosion free, this includes the Impeller.

The shaft is made from "Alumina Ceramic" as well as the shaft seat. Built for longevity and reliability.


KOVA-TMDH-5040-2 (KOVA4000)

KOVA-TMDH-5040-2 (KOVA4000) 2HP Single Phase induction motor centrifugal fan cooled magnetic drive pump.

Available in 380/440-3Ph,  220/240-50/60Hz and  110/60Hz. Max flow rate 400-lpm at 0.5mtr-head - Min flow rate at 19.4-lpm at 19.8-mtr head. Output 1.50KW / 2.0HP  Standard working point flow rate 3271GPH/220LPM IP54 (Ingress Protection)

Fittings: 50mm BSP (2.0") Inlet / 40mm BSP (1.5") Outlet. Physical size with out any fittings attached: 260mm wide 576mm long 255mm high.

Electrical Specification: At 220/240-50/60Hz The (approx.) AMP Draw 6.5-7.2  Watts: 630-700 This can very on Head and Temp. This Spec is at Standard Working Point.      AMP Draw 5.5 - 9.2 @ 240VAC

Capacitors for 220/240V 50/60Hz: (Start) CD60 200uf 450V - (Running) CBB60 35uf 300V

Capacitors for 110V 60Hz: (Start) CD60 600uf 450V - (Running) CBB60 120uf 300V

Pump Body: Aluminium TEFC (Totally Enclosed Fan-Cooled) This means that Air is forced automatically over the Pump body by a connected fan at the back of the pump, pushing air forward over the pump body that increases the heat exchange (keeping the pump cool) .

Pump Head: GFRPP (Glass Reinforced Polypropylene with 30% reinforced Fibre) Very strong, and corrosion free, this includes the Impeller.

The shaft is made from "Alumina Ceramic" as well as the shaft seat. Built for longevity and reliability.




KOVA-TMDH-5040-3 (KOVA5000)

KOVA-TMDH-5040-3 (KOVA5000) 3HP Single Phase induction motor centrifugal fan cooled magnetic drive pump.

Available in 380/440-3Ph, 220/240-50/60Hz and 110/60Hz. Max flow rate 500-lpm at 0.5mtr-head - Min flow rate at 20.6-lpm at 23.4mtr head. Output 2.21KW / 3.0HP Standard working point flow rate 4775GPH/300LPM BSP Fittings: 50mm (2.0") Inlet / 40mm (1.5") Outlet. 260mm wide 576mm long 255mm high (without fittings)

Capacitors for 220/240V 50/60Hz: (Start) CD60 250uf 450V - (Running) CBB60 35uf 300V

Capacitors for 110V 60Hz: (Start) CD60 750uf 450V - (Running) CBB60 150uf 300V

Pump Body: Aluminium TEFC (Totally Enclosed Fan-Cooled) This means that Air is forced automatically over the Pump body by a connected fan at the back of the pump, pushing air forward over the pump body that increases the heat exchange (keeping the pump cool) .

Pump Head: GFRPP (Glass Reinforced Polypropylene with 30% reinforced Fibre) Very strong, and corrosion free, this includes the Impeller.

The shaft is made from "Alumina Ceramic" as well as the shaft seat. Built for longevity and reliability.


KOVA-TMDH-5040-5 (KOVA6000)

KOVA-TMDH-5040-5 (KOVA6000) 5HP Single Phase induction motor centrifugal fan cooled magnetic drive pump.

Available in 380/440-3Ph, 220/240-50/60Hz and 110/60Hz. Max flow rate 600-lpm at 0.5mtr-head - Min flow rate at 50.1-lpm at 30.5mtr head. Output 3.75KW / 5.0HP Standard working point flow rate 6339GPH/400LPM BSP Fittings: 50mm (2.0") Inlet / 40mm (1.5") Outlet. 280mm wide 615mm long 275mm high (without fittings)

Capacitors for 220/240V 50/60Hz: (Start) TBA - (Running) TBA

Capacitors for 110V 60Hz: (Start) TBA - (Running) TBA

Pump Body: Aluminium TEFC (Totally Enclosed Fan-Cooled) This means that Air is forced automatically over the Pump body by a connected fan at the back of the pump, pushing air forward over the pump body that increases the heat exchange (keeping the pump cool) .

Pump Head: GFRPP (Glass Reinforced Polypropylene with 30% reinforced Fibre) Very strong, and corrosion free, this includes the Impeller.

The shaft is made from "Alumina Ceramic" as well as the shaft seat. Built for longevity and reliability.
